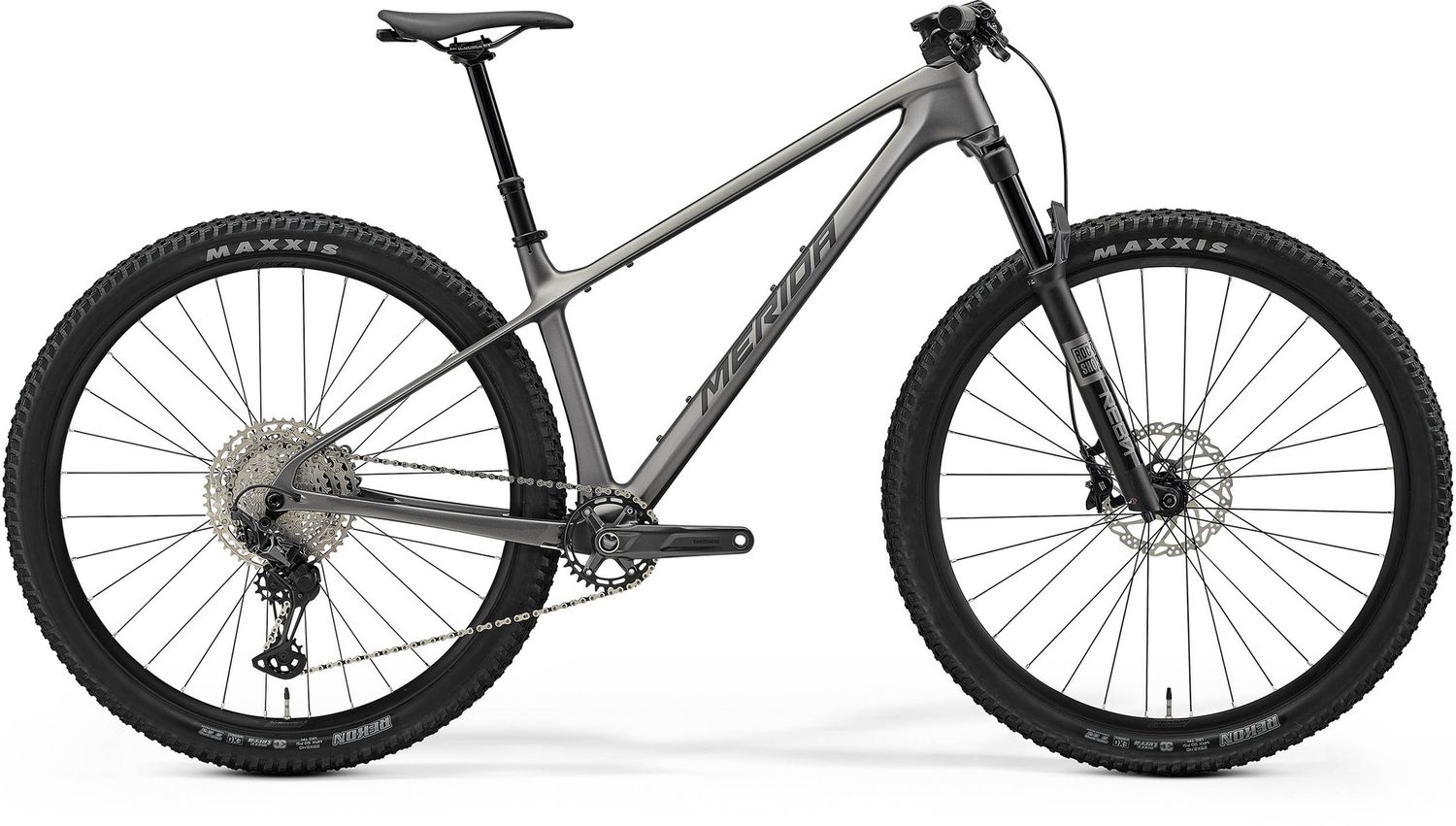

Merida MY26 Big Nine TR 5000
Product Details
Brand:
MERIDA
Highlits:Lightweight CF3 carbon fibre frame with 2.4" tyre clearanceProgressive geometry with Agilometer sizing for confident handlingRockShox Reba RL 120mm air forkShimano 1 x 12 Deore / XT drivetrainShimano SLX hydraulic disc brakesMerida dropper seatpost with remote leverThe low weight of a carbon frame for the uphill, paired with trail-hardtail swagger for the descents. The 120mm fork, aggressive tyres and a dropper post mean you've got a recipe for fun.
Relentless speed and low weight uphill, paired with trail-hardtail swagger on the descents. The Big Nine TR 5000 is ready to push beyond what cross-country hardtails should do. We've added a longer travel 120 mm travel RockShox fork, more aggressive high-volume tyres and our own lightweight dropper post to a CF3 carbon frame that features progressive geometry and our Agilometer sizing.
Specification
Frame
- CF3 III - carbon; Boost axle standard, BSA BB standard, Max. tyre size 29" x 2.4"
Fork
- RockShox Reba RL; Air; 120 mm travel; Tapered; 44 mm fork offset
Gears
- 12
Shifters
- Front: JD-FL lever, Rear: Shimano Deore M6100
Rear Derailleur
- Shimano XT; SGS
Bottom Bracket
- Shimano BB-MT-501; 24mm
Chain
- KMC X12
Chainset
- Shimano Deore MT512; 32 tooth chainset; Crank length: 170mm
Cassette
- Shimano Deore M6100; 10-51 teeth; 12 speed
Front Brake
- Shimano SLX M7100; 2 piston with Shimano RT54; 180mm
Rear Brake
- Shimano SLX M7100; 2 piston with Shimano RT54; 160mm
Grip
- Merida Comp TR
Handlebar
- Merida Expert CC; material: aluminium; 760mm wide; flat
Stem
- Merida Team CC III; material: aluminium; 31.8 mm diameter; -6 degree rise; incl. Merida Smart Mount; Length: 60mm
Head Set
- Acros ICR Merida integrated neck; Upper and lower IPS sealing
Pedal
- Not included
Saddle
- Merida Comp SL; 25% recycled material; V-mount
Seat Post
- Merida Team TR SL; 30.9mm diameter; in-line; (S-M) - 150mm, (L-XXL) - 170mm seat post travel
Wheel Size
- 29"
Rims
- Merida Expert CC II; 25mm inner rim width; material: aluminium; Tubeless ready (Stans 30mm tubeless tape installed and valves not included)
Spokes
- Double Butted Black stainless w/black nipples
Front Hub
- Shimano TC500-B; 110x15mm; 32 spoke; Centerlock
Rear Hub
- Shimano TC500-MS-B; 148x12mm; 32 Spoke; Centerlock
Front Tyre
- Maxxis Rekon; 29x2.4" WT; tubeless ready; 3C EXO
Rear Tyre
- Maxxis Rekon; 29x2.4" WT; tubeless ready; 3C EXO
Colour
- Silk Gunmetal Grey (Black)
Season
- 2026
Other
- Merida SMART MOUNT; Garmin Carrier + Garmin insert*2 + GoPro/Light Mount and Merida Multitool with saddlebox
