- Updated TFS aluminium frame with clearance for 2.4" tyres
- Trail ready geometry for confident off-road handling
- 100mm Suntour suspension fork
- Shimano mechanical disc brakes
- Shimano 2 x 7 drivetrain
- 29" wheels with Kenda tyres
- Size tuned Merida finishing kit

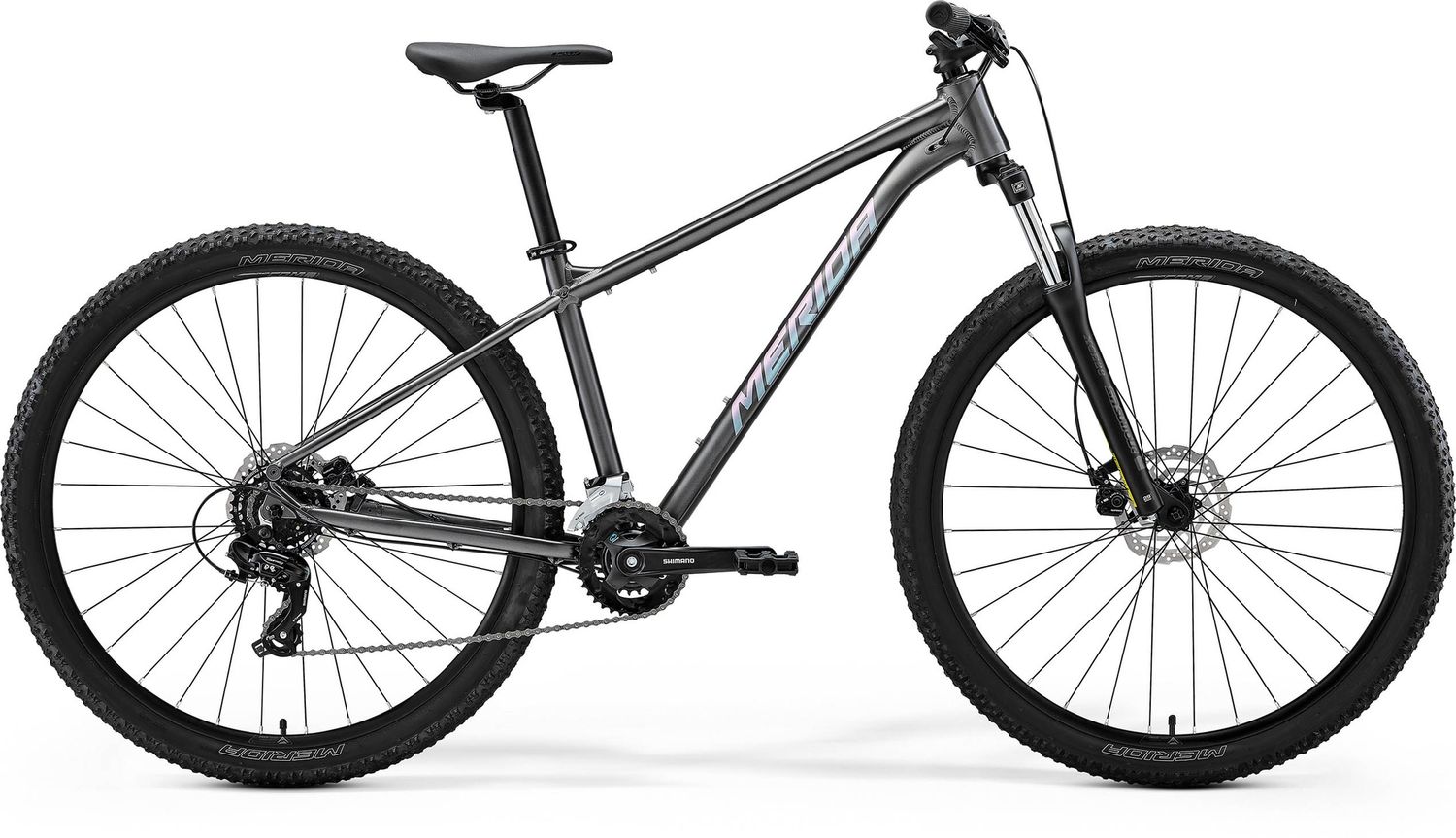

Merida's expertise for over 50 years has been building bombproof aluminium hardtails. The latest generation follows modern mountain bike trends - a longer reach combined with a shorter stem. The geometry features a steeper seat angle and slacker head angle for greater offroad capability but without compromising everyday usability. The sophisticated TFS frames feature: full internal cable routing for a clean, neat set up, tapered headtube offering future upgrade potential inboard disc brake mounts protect the brake and maximise stopping power dropper post ready New XXS Big Seven size extends the wide range of sizes; Big Nine for taller riders, Big Seven for shorter riders. Riders in the middle can take riding style into account - for speed and efficiency choose a Big Nine, for agility choose a Big Seven.
Specification
- TFS V - 6061 aluminium, double butted and technoformed. Tapered head tube. Chain stay mounted disc brake. Internal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max. tyre size 27.5" x 2.4"
- SR Suntour XCE28; Coil; 100 mm travel; 27x2.25" max. tyre size
- 14
- Front: Shimano Altus EF-500-2L, Rear: Shimano Altus EF-500-7R
- Shimano Altus FD-M315
- Shimano Tourney TY300
- FSA TH-7420ST; 73-127.5mm
- KMC Z7
- Prowheel TM-CY10; 36-22 tooth chainset; material: aluminium; Crank length: 165mm
- Shimano CS-HG210-7; 12-32 teeth; 7 speed
- Shimano BR-M375; mechanical Disc brake with Shimano RT10; 160 mm
- Shimano BR-M375; mechanical Disc brake with Shimano RT10; 160 mm
- Merida EC
- Merida CC; material: aluminium; 15mm rise; (XXS-XS) - 700mm wide, S - 720mm wide
- Merida Comp CC; material: aluminium; 31.8 mm diameter; 7 degree rise
- FSA NO.55R/57SC/57B
- VP VPE-891
- Merida Sport
- Merida CC; material: aluminium; 30.9mm diameter; 15mm layback
- 27.5"
- Merida Comp CC; 20mm inner rim width; material: aluminium
- Black steel
- Shimano TX505; 100x9mm; 32 Spoke; Centerlock
- Shimano TX505; 135x9mm; 32 Spoke; Centerlock
- Kenda K1080; 27.5x2.2"
- Kenda K1080; 27.5x2.2"
- Silk Gunmetal Grey (Blue)
- 2026
Geometry
