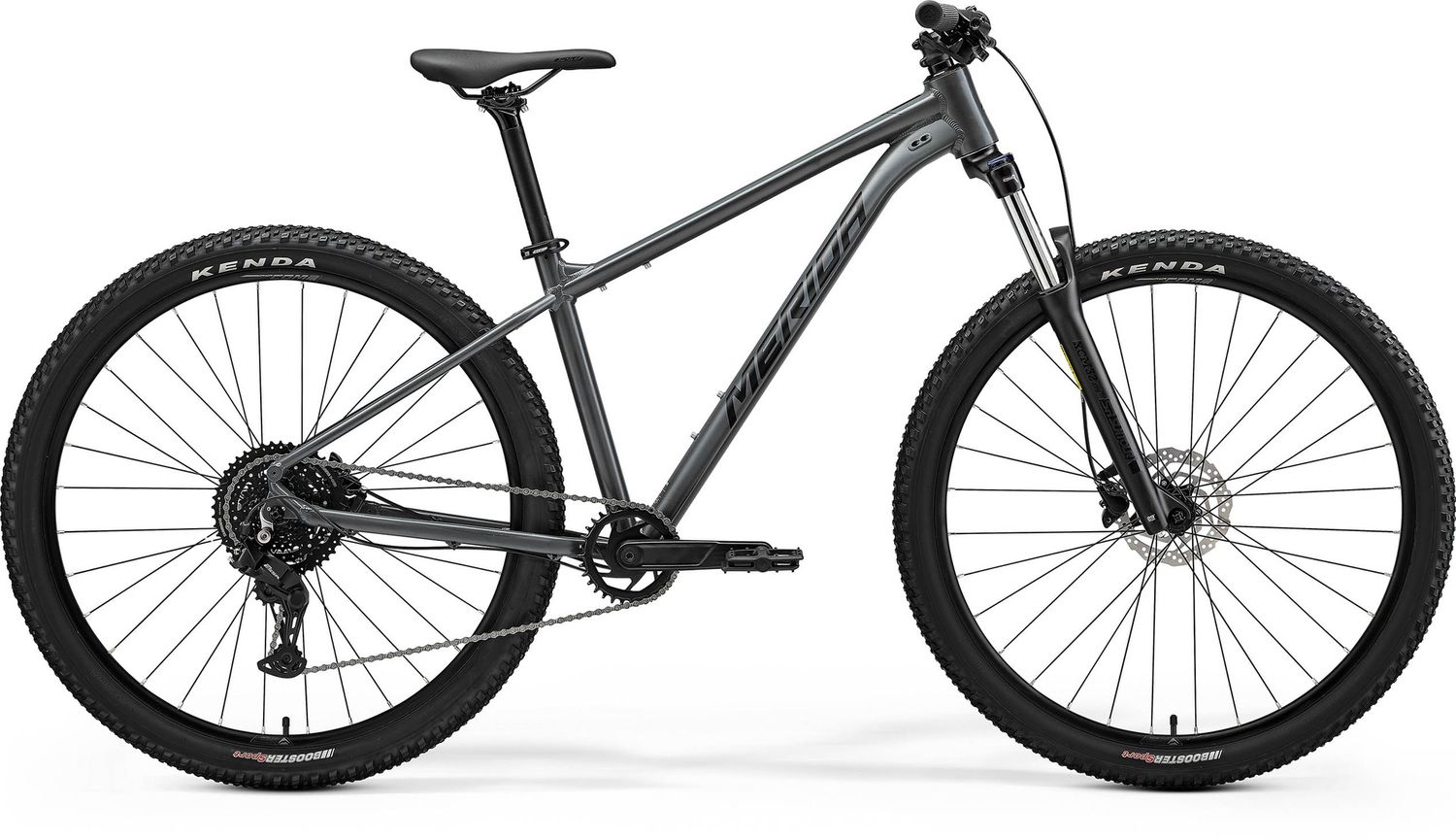

Merida MY26 Big Seven 20

Merida MY26 Big Seven 20

£583.33
Sold out
Size
Please choose
Colour
Please choose
Sold out
Save this product for later
Have questions?
Share this product with your friends
Pin it
Merida MY26 Big Seven 20
Product Details
Brand: MERIDA
HighlightsUpdated TFS aluminium frame with clearance for 2.4" tyresTrail ready geometry for confident off-road handling120mm Suntour suspension forkShimano MT200 hydraulic disc brakesShimano 1 x 8 drivetrain27.5" wheels with Shimano hubs and Kenda tyresSize tuned Merida finishing kit650b hardtail with sophisticated TFS aluminium trail ready geometry frame, Shimano 1 x 8 drivetrain, SR Suntour 120mm lockout fork, Shimano hydraulic disc brakes,



Merida's expertise for over 50 years has been building bombproof aluminium hardtails. The latest generation follows modern mountain bike trends - a longer reach combined with a shorter stem. The geometry features a steeper seat angle and slacker head angle for greater offroad capability but without compromising everyday usability. The sophisticated TFS frames feature: full internal cable routing for a clean, neat set up, tapered headtube offering future upgrade potential inboard disc brake mounts protect the brake and maximise stopping power dropper post ready New XXS Big Seven size extends the wide range of sizes; Big Nine for taller riders, Big Seven for shorter riders. Riders in the middle can take riding style into account - for speed and efficiency choose a Big Nine, for agility choose a Big Seven.

Specification

Frame
  • TFS V - 6061 aluminium, double butted and technoformed.  Tapered head tube. Chain stay mounted disc brake. Internal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max. tyre size 27.5" x 2.4"
Fork
  • SR Suntour XCM32 NLO; Coil; 120 mm travel; lockout; 29x2.4" max. tyre size
Gears
  • 8
Shifters
  • Rear: Shimano Essa SL-315-8R
Rear Derailleur
  • Shimano Essa RD-U2000-8; GS
Bottom Bracket
  • Shimano UN101 LL123
Chain
  • KMC Z8.3
Chainset
  • Prowheel Epro-MD26S; 32 tooth chainset; material: aluminium; Crank length: 165mm
Cassette
  • Shimano CS-HG300-8; 11-45 teeth; 8 speed
Front Brake
  • Shimano MT200; hydraulic brake with Shimano RT10; 160 mm
Rear Brake
  • Shimano MT200; hydraulic brake with Shimano RT10; 160 mm
Grip
  • Merida EC
Handlebar
  • Merida CC; material: aluminium; 15mm rise; (XXS-XS) - 700mm wide, S - 720mm wide
Stem
  • Merida Comp CC; material: aluminium; 31.8 mm diameter; 7 degree rise
Head Set
  • FSA NO.55R/57SC/57B
Pedal
  • VP VPE 536
Saddle
  • Merida Sport
Seat Post
  • Merida Comp CC; material: aluminium; 30.9mm diameter; in-line
Wheel Size
  • 27.5"
Rims
  • Merida Comp CC; 20mm inner rim width; material: aluminium
Spokes
  • Black steel
Front Hub
  • Shimano TX505; 100x9mm; 32 Spoke; Centerlock
Rear Hub
  • Shimano TX505; 135x9mm; 32 Spoke; Centerlock
Front Tyre
  • Kenda Booster; 27.5x2.4"
Rear Tyre
  • Kenda Booster; 27.5x2.4"
Colour
  • Silk Dark Grey (Black)
Season
  • 2026

Geometry
