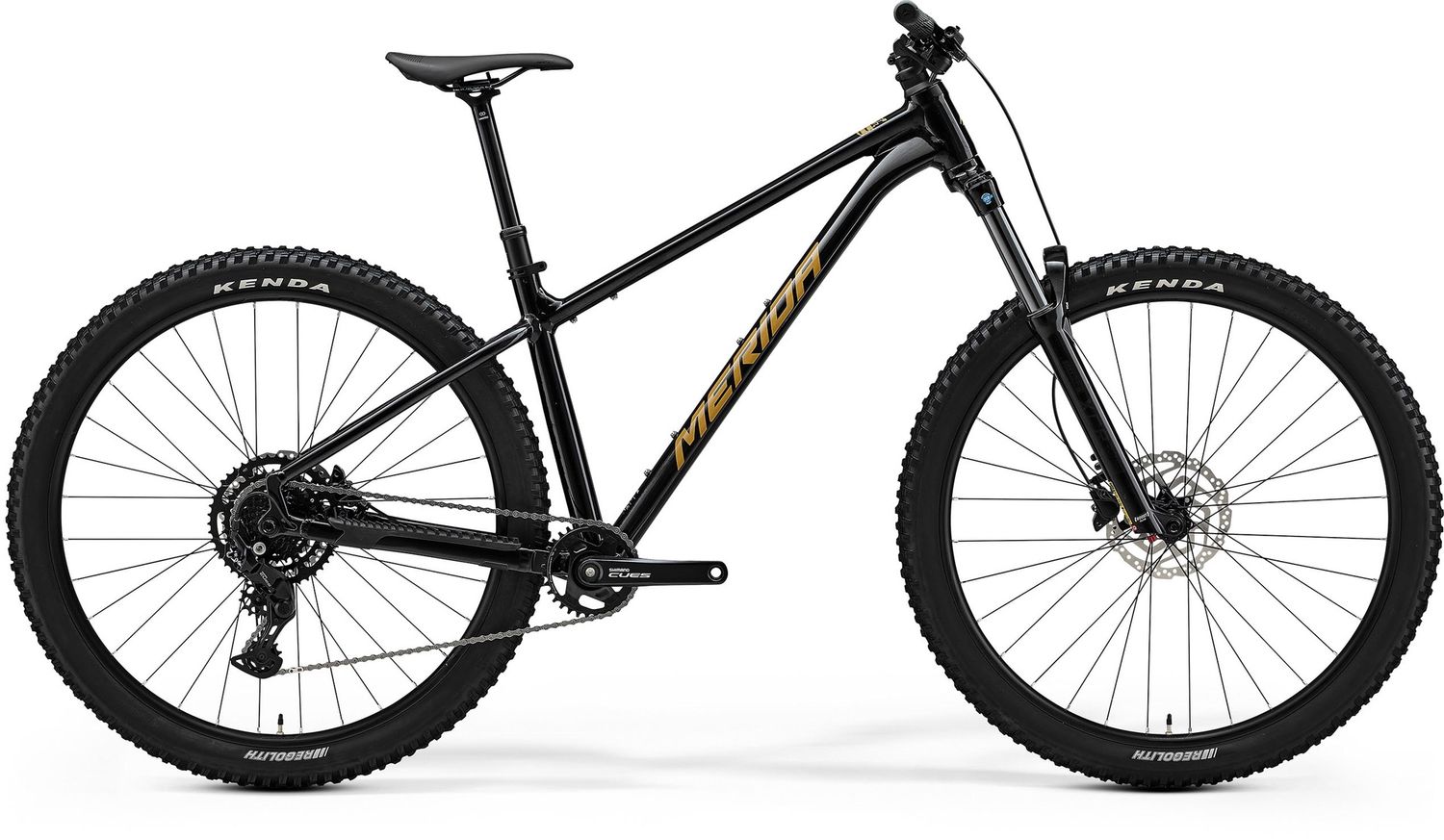

Merida MY26 Big Trail 300
Product Details
Brand:
MERIDA
Highlights:
- Modern trail bike geometry with long reach, slack head angle and steep seat angle
- 140mm Air sprung fork
- 1 x 9 Shimano CUES drivetrain
- Shimano MT200 hydraulic disc brakes
- Dropper seat post
- 29" Boost standard wheels with 2.4" tyres
The original Big Trail concept was the result of a few UK dealers discussing the ideal UK trail bike with the Merida R&D chief - simple: 140mm air fork, 29" wheels, 1 x transmission and a dropper post. Now in its 2nd iteration Big Trail is a fun-packed and hugely capable trail bike. Its progressive geometry combines a steep 76.5° seat angle with a slack 64.0° head angle giving great climbing characteristics and plenty of stability when the terrain gets steep or rough. Sizing follows the Agilometer principle which means most sizes work for most body sizes so that riding style can be factored in. If you want to go fast, take the longer size, for agility, take a shorter size.
Specification
Frame
- TFS - 6061 double butted technoformed aluminium, smooth welding, Boost axle standard, tapered head tube, inboard disc mounts, internal cable routing, BSA BB standard, Max tyre size 29" x 2.5"
Fork
- SR Suntour XCR34 2CR; Air; 140 mm travel; Tapered; lockout; 44mm fork offset; 29x2.4" max. tyre size
Gears
- 9
Shifters
- Rear: Shimano CUES U4000
Rear Derailleur
- Shimano CUES U4000;
Bottom Bracket
- Shimano BB-UN101; 73mm
Chain
- KMC xGlide
Chainset
- Shimano CUES UT-400-1; 32 tooth chainset; Crank length: 170mm
Cassette
- SunRace U9; CS-U980 9AZ; 11-46 teeth; 9 speed
Front Brake
- Shimano MT200; 2 piston with Shimano RT10; 180mm
Rear Brake
- Shimano MT200; 2 piston with Shimano RT10; 180mm
Grip
- Merida Comp TR
Handlebar
- Merida Comp TR II; material: aluminium; 780mm wide; 35mm rise
Stem
- Merida Comp TR; material: aluminium; 35 mm diameter; 0 degree rise; Length: 40mm
Head Set
- Acros ICR Merida External neck; Upper and lower IPS sealing
Pedal
- Not included
Saddle
- Merida Comp SL; V-mount
Seat Post
- Merida Comp TR II; 34.9mm diameter; in-line; XShort - 150mm, (Short-XLong) - 170mm seat post travel
Wheel Size
- 29"
Rims
- Merida Comp CC II; 25mm inner rim width; material: aluminium; tubeless ready
Spokes
- Black stainless
Front Hub
- Shimano TC500-B; 110x15mm; 32 spoke; Centerlock
Rear Hub
- Shimano TC500-HM-B; 148x12mm; 32 spoke; Centerlock
Front Tyre
- Kenda Regolith; 29x2.4"; wired
Rear Tyre
- Kenda Regolith; 29x2.4"; wired
Colour
- Black (Brown)
Season
- 2026
Geometry
