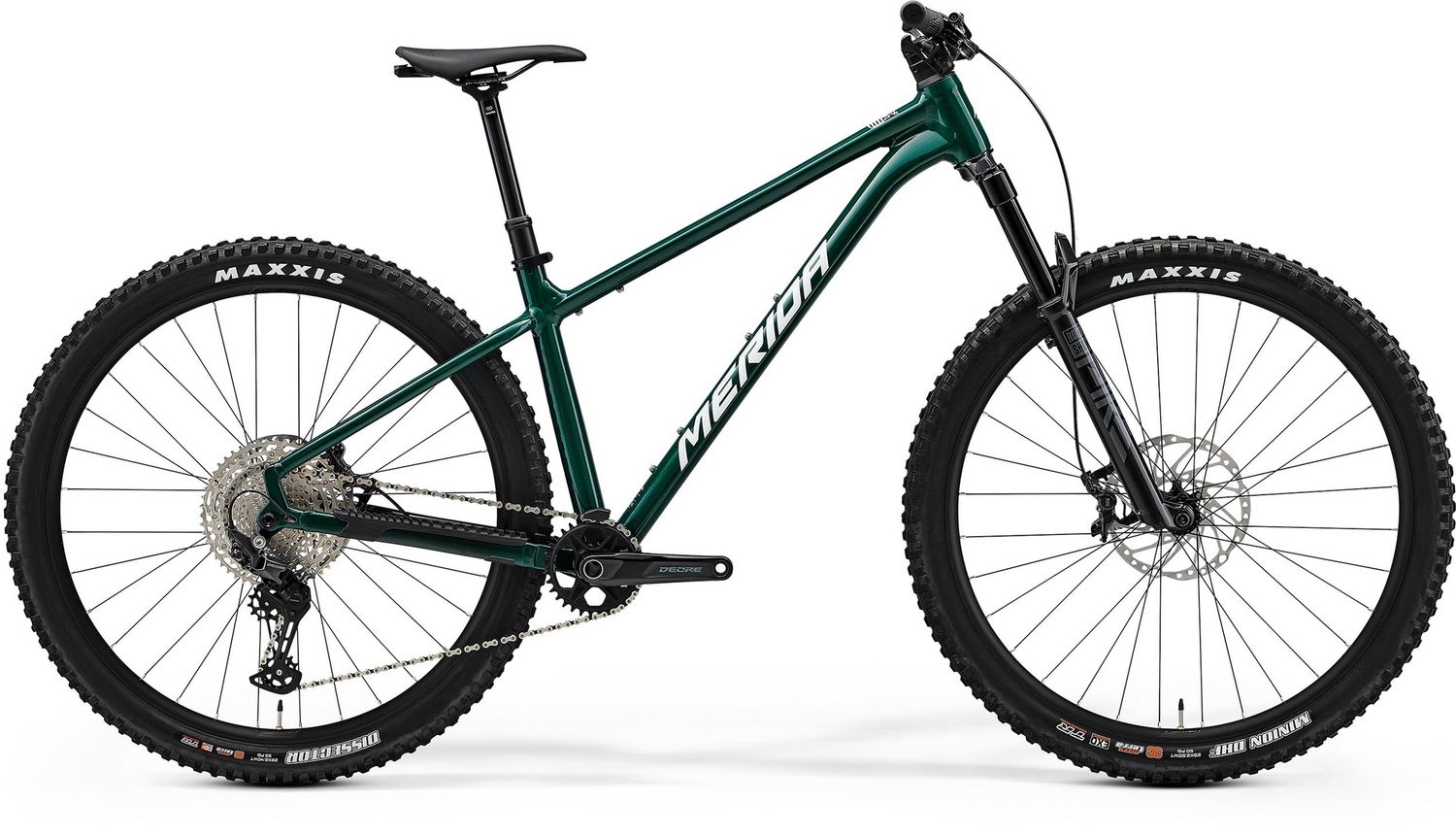

Merida MY26 Big Trail 600
Product Details
Brand:
MERIDA
Highlights:
- Modern trail bike geometry with long reach, slack head angle and steep seat angle
- 140mm RockShox Pike Air fork
- 1 x 12 Shimano Deore drivetrain
- Shimano Deore 4 piston hydraulic disc brakes
- Dropper seat post
- 29" Boost standard wheels with Reynolds 309 rims - 2.5" front and 2.4"rear tyres
The original Big Trail concept was the result of a few UK dealers discussing the ideal UK trail bike with the Merida R&D chief - simple: 140mm air fork, 29" wheels, 1 x transmission and a dropper post. Now in its 2nd iteration Big Trail is a fun-packed and hugely capable trail bike. Its progressive geometry combines a steep 76.5° seat angle with a slack 64.0° head angle giving great climbing characteristics and plenty of stability when the terrain gets steep or rough. Sizing follows the Agilometer principle which means most sizes work for most body sizes so that riding style can be factored in. If you want to go fast, take the longer size, for agility, take a shorter size.
Specification
Frame
- TFS - 6061 double butted technoformed aluminium, smooth welding, Boost axle standard, tapered head tube, inboard disc mounts, internal cable routing, BSA BB standard, Max tyre size 29" x 2.5"
Fork
- RockShox Pike; Air; 140 mm travel; tapered; platform; 44mm fork offset; 29x2.6 max. tyre size
Gears
- 12
Shifters
- Front: Shimano SL-MT500-IL, Rear: Shimano Deore M6100
Rear Derailleur
- Shimano Deore M6100; SGS
Bottom Bracket
- Shimano MT501; 24mm
Chain
- KMC X12
Chainset
- Shimano Deore M6120; 32 tooth chainset; Crank length: (XShort-Long) - 165mm, Xlong - 170mm
Cassette
- Shimano Deore M6100; 10-51 teeth; 12 speed
Front Brake
- Shimano Deore M6120; 4 piston with Shimano RT64; 203mm
Rear Brake
- Shimano Deore M6120; 4 piston with Shimano RT64; 203mm
Grip
- Merida Comp TR
Handlebar
- Merida Expert TR II; material: aluminium; 780mm wide; 30mm rise
Stem
- Merida Expert eTRII; material: aluminium; 35 mm diameter; 0 degree rise; Length: 40mm
Head Set
- Acros ICR Merida External neck; Upper and lower IPS sealing
Pedal
- Not included
Saddle
- Merida Comp SL; 25% recycled material; V-mount; incl. Merida minitool
Seat Post
- Merida Expert TR II; 34.9mm diameter; in-line; XShort - 150mm, (Short-Mid) - 170mm, Long - 200mm, XLong - 230mm seat post travel
Wheel Size
- 29"
Rims
- Reynolds 309 Enduro Comp; 30mm inner rim width; material: aluminium; Tubeless ready (Stans 30mm tubeless tape installed); 29"
Spokes
- Double Butted Black stainless w/black nipples
Front Hub
- Shimano TC500-B; 110x15mm; 32 spoke; Centerlock
Rear Hub
- Shimano TC500-MS-B; 148x12mm; 32 Spoke; Centerlock
Front Tyre
- Maxxis Minion DHF; 29x2.5"; kevlar bead; TR EXO 3C MaxxTerra
Rear Tyre
- Maxxis Dissector; 29x2.4"; kevlar bead; TR EXO+ 3C MaxxTerra
Colour
- Deep Forest Green (White)
Season
- 2026
Other
- Merida Multitool with saddlebox
Geometry
