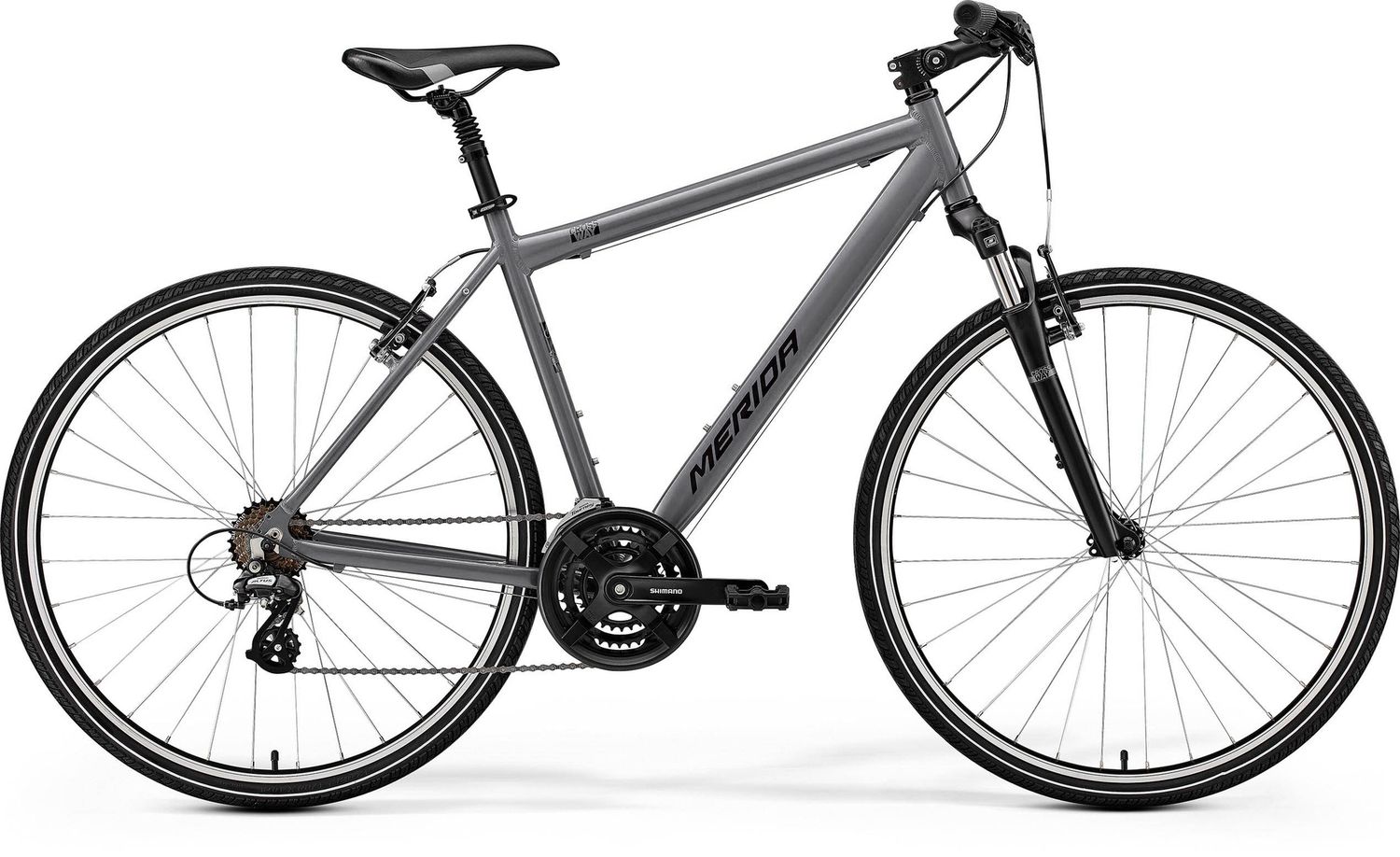

Merida MY26 Crossway 10-V
Product Details
Brand:
MERIDA
Highlights:
- Aluminium frame
- Suspension fork
- 21 speed Shimano drivetrain
- Adjustable stem
- Suspension seatpost
- Multiple fixing points for rear rack and mudguards
The Crossway is the perfect blend of comfort, enjoyment and all around practicality, suitable for leisure rides or commuting. For ultimate adaptability, the Crossway can be equipped with mudguards, racks and kickstands.
Specification
Frame
- DT - 6061 double butted technoformed aluminium. BSA BB standard, 135 x 9mm QR axle standard. Mounting points for rack, mudguards and kickstand. Max tyre size 700 x 42c
Fork
- SR Suntour NEX; Coil; 63 mm travel; 700x50C max. tyre size
Gears
- 21
Shifters
- Front: Shimano ST-EF500-L, Rear: Shimano ST-EF500-7R
Front Derailleur
- Shimano FD-TY510-3
Rear Derailleur
- Shimano RD-M310
Bottom Bracket
- FSA TH-7420ST, 68-124
Chain
- Sunrace CNM84
Chainset
- Shimano TY301; 48-38-28 tooth chainset; material: aluminium; Crank length: (XXS-M) - 170mm, (M/L up) - 175mm
Cassette
- Shimano MF-TZ500; 14-28 teeth; 7 speed
Front Brake
- Promax MTV-117A; V-brake
Rear Brake
- Promax MTV-117A; V-brake
Grip
- Merida EC
Handlebar
- Merida CC; material: steel; 620mm wide; 30mm rise
Stem
- Merida TK; material: aluminium; 25.4 mm diameter; adjustable
Head Set
- FSA TH888
Pedal
- VP VPE-891
Saddle
- Merida Cross Sport
Seat Post
- Merida TK; 27.2mm diameter; 13mm layback; 40mm seat post travel
Wheel Size
- 700c
Rims
- Merida CC; 17mm inner rim width; material: aluminium
Spokes
- Steel UCP
Front Hub
- Joytech JY-751DSE; 100x9mm; 32 Spoke
Rear Hub
- Joytech JY-752DSE; 135x9mm; 32 Spoke
Front Tyre
- Merida K1171; 700x40C; wired
Rear Tyre
- Merida K1171; 700x40C; wired
Colour
- Silk Warm Slate Grey (Black)
Season
- 2026
