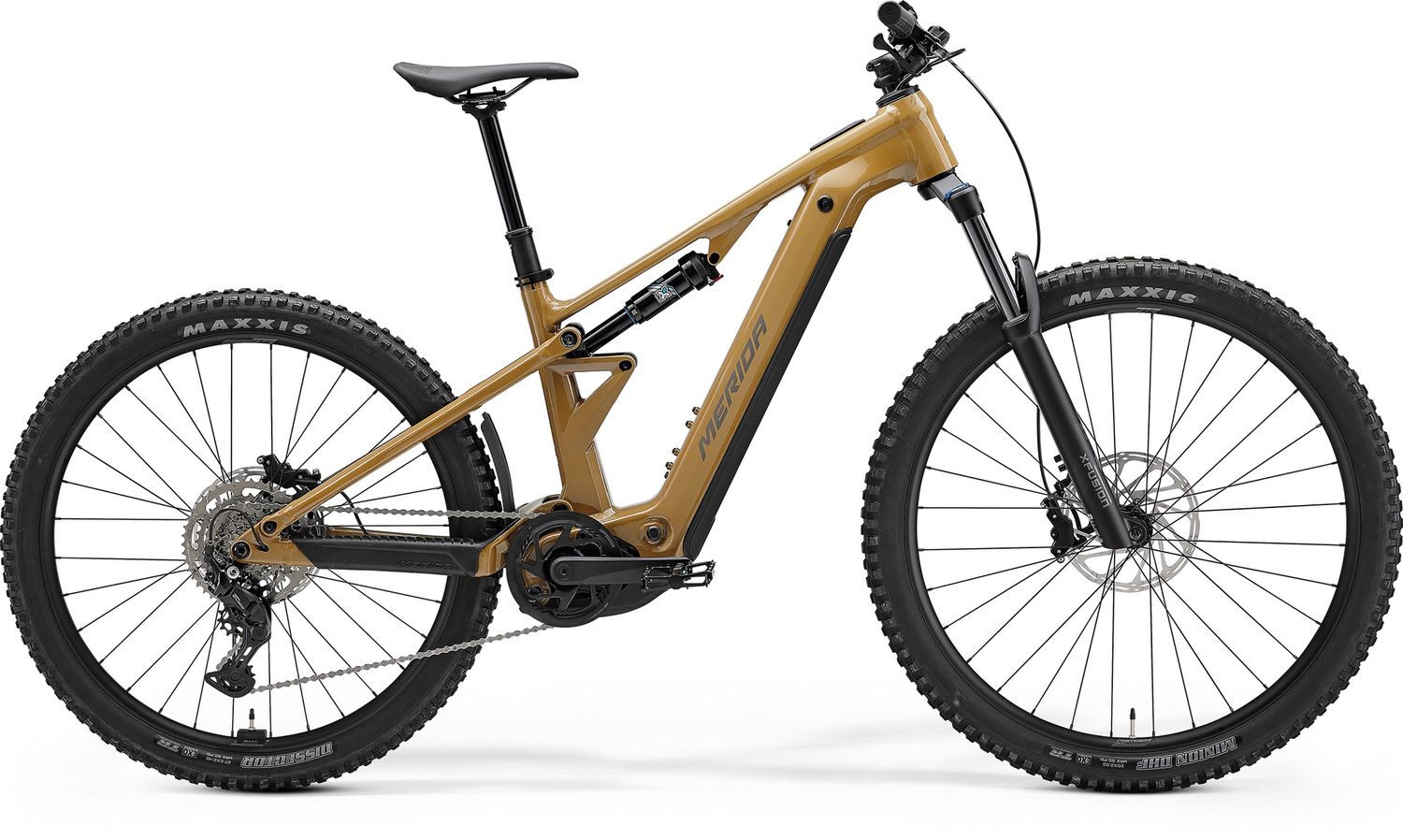

Merida MY26 Etmo 400
Product Details
Brand: MERIDA
Advanced aluminium frame design with 140 mm travelMixed 29/27.5" size wheel setup for agile and confident handlingBosch PX 90 Nm motor with 540 Wh batteryX-Fusion Migo 34 fork and O2 Pro rear shockSRAM DB4 brakes and Shimano CUES 9spd drivetrainMerida Comp TRII tubeless ready rims and Maxxis tyresOur best value Bosch powered e-MTB pairing our reliable aluminium full-suspension frame with the powerful Bosch PX motor and great value components, this is a bike that's ready to get out there and have adventures.



A quality e-MTB means more runs, more fun, and more time just getting out there. The Etmo is our most price-focussed Bosch-powered e-MTB. We’ve used all our aluminium frame design and manufacturing know-how to create a durable frame insped by the award-winning long-travel eOne-Eighty, but in an extra versatile and affordable package. We've backed this up with our lifetime frame warranty, too. * Lifetime frame warranty for Category 4 All Mountain (AM) + Enduro use Whether you're getting your first e-MTB or just want a lot of laughs on a budget, the Etmo 400 is the perfect starting point. A robust aluminium frame with 140 mm of travel at either end, it's more than capable of tackling proper trails. The Bosch PX drive unit delivers up to 90 Nm of torque, and the 540 Wh battery will fuel long trail sessions. We've used high-performance, great value kit from Shimano, SRAM and X-Fusion to create a great value package that delivers when it matters.

Specification

Frame
  • Lite I; aluminium; 140mm travel; removable intube battery;148 x12mm axle standard; Max. tyre size 29 x 2.6”
Motor
  • Bosch Performance Line PX
Battery
  • Bosch PowerTube 540 ; 540Wh
Battery Capacity
  • 540Wh
eBike Display
  • Bosch Purion 200
Charger
  • Bosch 2A Charger (220-240V)
Shock
  • X-Fusion O2 Pro
Fork
  • X-Fusion Migo 34 ; Air; 140mm travel; Tapered; 51mm off set. Max. tyre size 29 x 2.6"
Gears
  • 9
Shifters
  • Front: Shimano SL -MT500-L dropper lever Rear: Shimano CUES U4000-9 speed
Rear Derailleur
  • Shimano Cues U4000; GS
Chain
  • Shimano LG500
Chainset
  • FSA Direct Mount Steel 36 tooth chainring with FSA CK-220 wide E-Bike Forged 160mm long cranks
Cassette
  • Shimano Cues LG400-9; 11-46 teeth; 9 Speed
Brake Lever
  • SRAM DB4 stealth
Front Brake
  • SRAM DB4 stealth; 4 piston caliper with SRAM CenterLine; 200mm rotor
Rear Brake
  • SRAM DB4 stealth; 4 piston caliper with SRAM CenterLine; 200mm rotor
Grip
  • Merida Comp TR
Handlebar
  • Merida Comp TR II: aluminium; 780mm wide; 35mm rise
Stem
  • Merida Comp TR: aluminium; 35mm diameter; 0 degree rise; length: 40mm
Head Set
  • FSA NO.80/62 CR II Dual
Pedal
  • VP VPE-527
Saddle
  • Merida Comp SL; V-mount; incuding Merida minitool
Seat Post
  • Merida Comp TR IV; 34.9mm diameter; in-line; 150mm seat post travel
Wheel Size
  • 29" / 27.5"
Rims
  • Merida Comp TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"
Spokes
  • Black stainless
Front Hub
  • Shimano TC500-B; 110x15mm; 32 spoke; Centerlock
Rear Hub
  • Shimano TC500-HM-B; 148x12mm; 32 spoke; Centerlock
Front Tyre
  • Maxxis Minion DHF; 29 x 2.5"; EXO wired; tubeless ready
Rear Tyre
  • Maxxis Dissector; 27.5 x 2.4"  wired; tubeless ready
Colour
  • River Clay(Grey)
Season
  • 2026
Front Light
  • Lezyne Hekto StVZO E350+ Reverse; reverse Merida Custom Mount
Rear Light
  • CG-404RG-BLK
Other
  • Bosch Cable PowerTube Charging Socket 350mm
