Merida MY26 Etmo 500

£3 666.67
Sold out
Size
Please choose
Colour
Please choose
Sold out
Save this product for later
Have questions?
Share this product with your friends

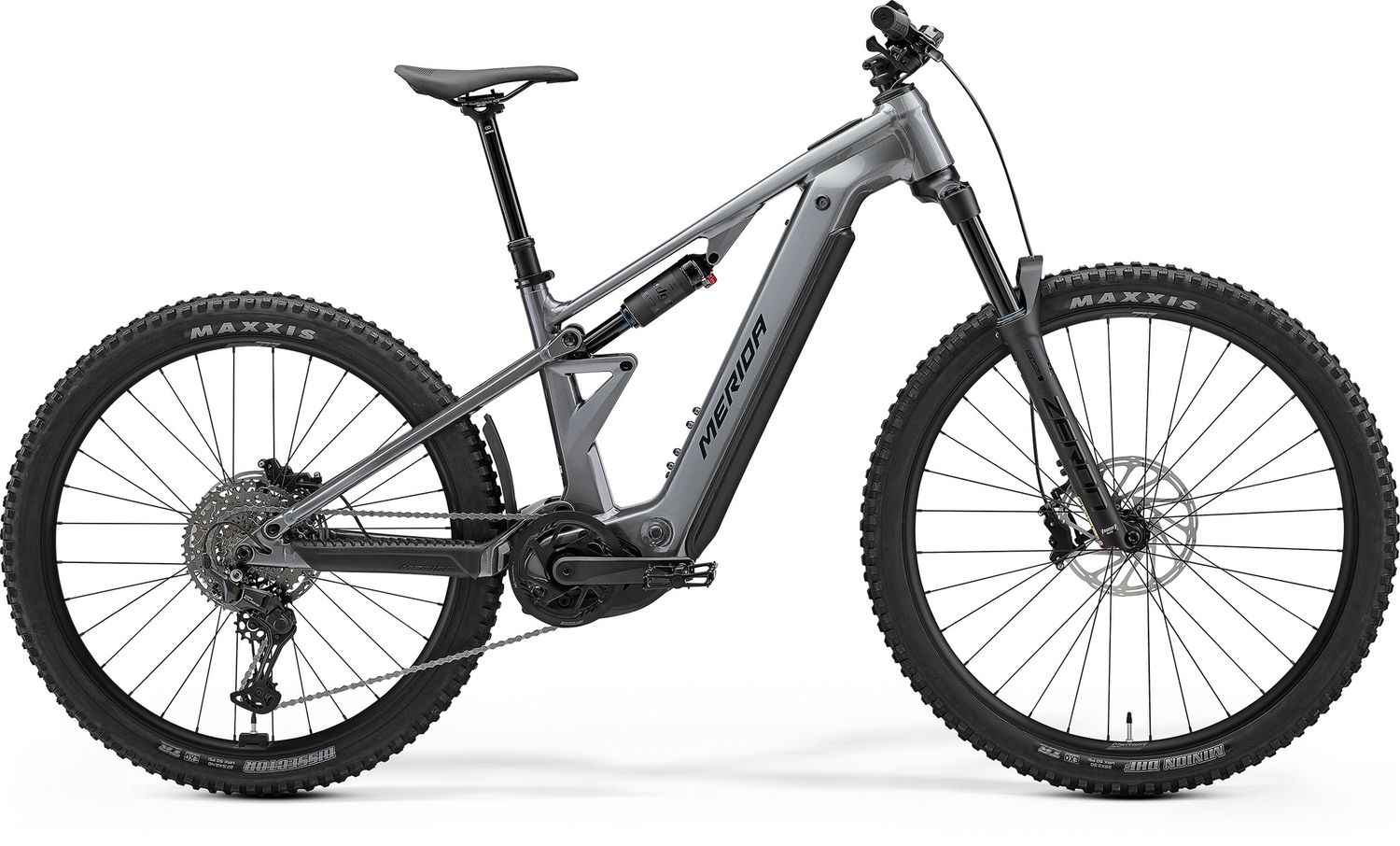

Merida MY26 Etmo 500
Product Details
Brand: MERIDA
Advanced aluminium frame with 140 mm travelMixed 29/27.5" size wheel setup for agile and confident handlingBosch CX 100 Nm motor and 800 Wh batterySuntour Zeron 36 X fork and Edge X rear shockSRAM DB4 brakes and Shimano CUES 10-speed drivetrainMerida Comp TRII tubeless ready rims and Maxxis tyresPowerful Bosch CX motor and an 800Wh battery, paired with our reliable aluminium full-suspension frame, this is a serious off-road machine at a killer price. Fun mixed wheel handling and a well-thought-out spec will give you miles of riding fun.



A quality e-MTB means more runs, more fun, and more time just getting out there. The Etmo is our most price-focussed Bosch-powered e-MTB. We’ve used all our aluminium frame design and manufacturing know-how to create a durable frame insped by the award-winning long-travel eOne-Eighty, but in an extra versatile and affordable package. We've backed this up with our lifetime frame warranty, too. * Lifetime frame warranty for Category 4 All Mountain (AM) + Enduro use The Etmo 500 Pro features a powerful Bosch CX 100 Nm motor and high-capacity 800 Wh battery, paired with our reliable aluminium full-suspension frame. Designed to be a serious off-road machine that won't break your budget, we've used Suntour suspension units to deliver on-trail performance, while the reliable shifts of the Shimano drivetrain and powerful SRAM brakes will keep things under control. Add in fun but planted handling thanks to a mixed wheel size setup and our well-proven geometry concept, and you're ready to ride.

Specification

Frame
  • Lite I; aluminium; 140mm travel; removable intube battery;148 x12mm axle standard; Max. tyre size 29 x 2.6”
Motor
  • Bosch Performance Line CX
Battery
  • Bosch PowerTube 800; 800Wh
Battery Capacity
  • 800Wh
eBike Display
  • Bosch Purion 200
Charger
  • Bosch 2A Charger (220-240V)
Power Button
  • Bosch System Controller
Mode Switch
  • Bosch Mini Remote
Shock
  • SR Suntour Edge X R
Fork
  • SR Suntour Zeron 36X; Air; 140mm travel; Tapered; 44mm fork off set. Max. tyre size 29 x 2.6"
Gears
  • 10
Shifters
  • Front: Shimano SL -MT500-L dropper lever Rear: Shimano CUES U6000-10 speed
Rear Derailleur
  • Shimano Cues U6000; GS
Chain
  • Shimano LG500
Chainset
  • FSA Direct Mount Steel 36 tooth chainring with FSA CK-220 wide E-Bike Forged 160mm long cranks
Cassette
  • Shimano Cues LG400; 11-48 teeth; 10 Speed
Brake Lever
  • SRAM DB4 stealth
Front Brake
  • SRAM DB4 stealth; 4 piston caliper with SRAM CenterLine; 200mm rotor
Rear Brake
  • SRAM DB4 stealth; 4 piston caliper with SRAM CenterLine; 200mm rotor
Grip
  • Merida Comp TR
Handlebar
  • Merida Comp TR II: aluminium; 780mm wide; 35mm rise
Stem
  • Merida Comp TR: aluminium; 35mm diameter; 0 degree rise; length: 40mm
Head Set
  • FSA NO.80/62 CR II Dual
Pedal
  • VP VPE-527
Saddle
  • Merida Comp SL; V-mount; incuding Merida minitool
Seat Post
  • Merida Expert TR II; 34.9mm diameter; in-line; XS - 125mm, S - 150mm, M - 170mm, L - 200mm, XL - 230mm seat post travel
Wheel Size
  • 29" / 27.5"
Rims
  • Merida Comp TR II; 28mm inner rim width: aluminium; Tubeless ready (Stans 30mm tubeless tape installed and valves not included); front 29"; rear 27.5"
Spokes
  • Black stainless
Front Hub
  • Shimano TC500-B; 110x15mm; 32 spoke; Centerlock
Rear Hub
  • Shimano TC500-HM-B; 148x12mm; 32 spoke; Centerlock
Front Tyre
  • Maxxis Minion DHF; 29 x 2.5"; EXO wired; tubeless ready
Rear Tyre
  • Maxxis Dissector; 27.5 x 2.4"  wired; tubeless ready
Colour
  • Gunmetal Grey(Black)
Season
  • 2026
Front Light
  • CG-119PG-BLACK(1)
Rear Light
  • CG-404RG-BLK
Other
  • Bosch Cable PowerTube Charging Socket 350mm

Geometry
