Merida MY26 Etmo 800

£4 375.00
Sold out
Size
Please choose
Colour
Please choose
Sold out
Save this product for later
Have questions?
Share this product with your friends

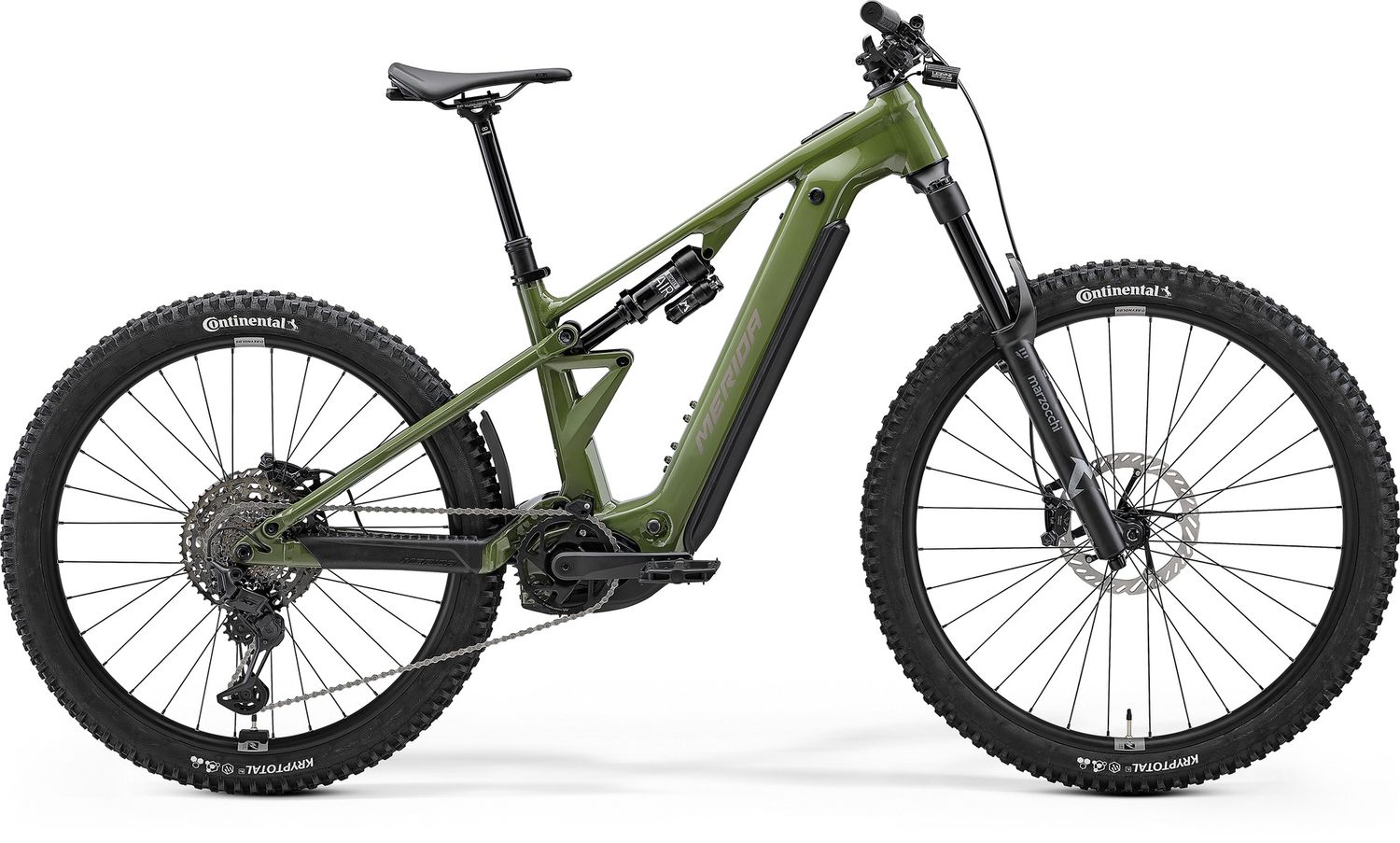

Merida MY26 Etmo 800
Product Details
Brand: MERIDA
Advanced aluminium frame with 160 mm travelMixed 29/27.5" size wheel setup for agile and confident handlingBosch CX 100 Nm motor and 800 Wh batteryMarzocchi Bomber Z fork and Bomber Air rear shockShimano XT brakes and XT Linkglide 11-speed drivetrainReynolds 309 tubeless ready wheelset and Continental Kryptotal tyresProper performance for riders who don't want to blow the budget. High-value aluminium 160 mm full-suspension frame paired with a powerful Bosch CX motor and 800Wh battery to deliver a fun and capable ride at a price that's hard to ignore.



A quality e-MTB means more runs, more fun, and more time just getting out there. The Etmo is our most price-focussed Bosch-powered e-MTB. We’ve used all our aluminium frame design and manufacturing know-how to create a durable frame insped by the award-winning long-travel eOne-Eighty, but in an extra versatile and affordable package. We've backed this up with our lifetime frame warranty, too. * Lifetime frame warranty for Category 4 All Mountain (AM) + Enduro use The Etmo 800 delivers serious trail performance without hammering your wallet. Combining our high-value aluminium 160 mm travel frame with Bosch's powerful 100 Nm CX motor and big 800 Wh battery, so you can explore for hours or lap your favourite loops all day long. With mixed-size wheels for a fun but stable ride and our proven geometry, you're guaranteed fun whether you're a fresh face to mountain biking or an experienced hand. Quality kit from Shimano handles stopping and drivetrain duty, while Marzocchi's legendary Bomber suspension, including a stout 38 mm stanchion fork, takes care of the bumps.

Specification

Frame
  • Lite I; aluminium; 160mm travel; removable intube battery;148 x12mm axle standard; Max. tyre size 29 x 2.6”
Motor
  • Bosch Performance Line CX
Battery
  • Bosch PowerTube 800; 800Wh
Battery Capacity
  • 800Wh
eBike Display
  • Bosch Purion 400
Charger
  • Bosch 4A Charger (220-240V)
Power Button
  • Bosch System Controller
Mode Switch
  • Bosch Mini Remote
Shock
  • Marzocchi Bomber Air
Fork
  • Marzocchi Bomber Z eMTB; Air; 160mm travel; Tapered; 44mm fork offset. Max. tyre size 29 x 2.6"
Gears
  • 11
Shifters
  • Front: SRAM Dropper Lever MMX Rear: Shimano XT M8130 11 speed
Rear Derailleur
  • Shimano XT RDM8130 LinkGlide 11 speed
Chain
  • Shimano LG500
Chainset
  • FSA Direct Mount Steel 36 tooth chainring with FSA CK-220 wide E-Bike Forged 160mm long cranks
Cassette
  • Shimano LG700; 11-50 teeth; 11 Speed
Brake Lever
  • Shimano XT
Front Brake
  • Shimano XT; 4 piston caliper with Shimano CL700; 203mm rotor
Rear Brake
  • Shimano XT; 4 piston caliper with Shimano CL700; 203mm rotor
Grip
  • Merida Expert TR
Handlebar
  • Merida Expert eTR; 780mm wide
Stem
  • Merida Comp TR: aluminium; 35mm diameter; 0 degree rise; length: 40mm
Head Set
  • Acros ICR External neck with Blocklock
Pedal
  • VP VPE-533
Saddle
  • Proxim Altius with steel rails, V-mount adapter; incuding Merida minitool
Seat Post
  • Merida Expert TR II; 34.9mm diameter; in-line; XS - 125mm, S - 150mm, M - 170mm, L - 200mm, XL - 230mm seat post travel
Wheel Size
  • 29" / 27.5"
Rims
  • Reynolds 309 Enduro Comp; 30mm inner rim width; aluminium; Tubeless ready (Stans 30mm tubeless tape installed); front 29"; rear 27.5"
Spokes
  • Black stainless
Front Hub
  • Shimano TC500-B; 110x15mm; 32 spoke; Centerlock
Rear Hub
  • Shimano TC500-HM-B; 148x12mm; 32 spoke; Centerlock
Front Tyre
  • Continental Kryptotal-F; 29 x 2.4"; kevlar bead; TR; Enduro casing; Soft compund
Rear Tyre
  • Continental Kryptotal-R; 27.5 x 2.4" ; kevlar bead; Enduro casing, soft compound
Colour
  • Anaconda Green(Grey)
Season
  • 2026
Front Light
  • Lezyne Hekto StVZO E350+ Reverse; reverse Merida Custom Mount
Rear Light
  • USB rear Light CG-214RG
Other
  • Bosch Cable PowerTube Charging Socket 350mm

Geometry
