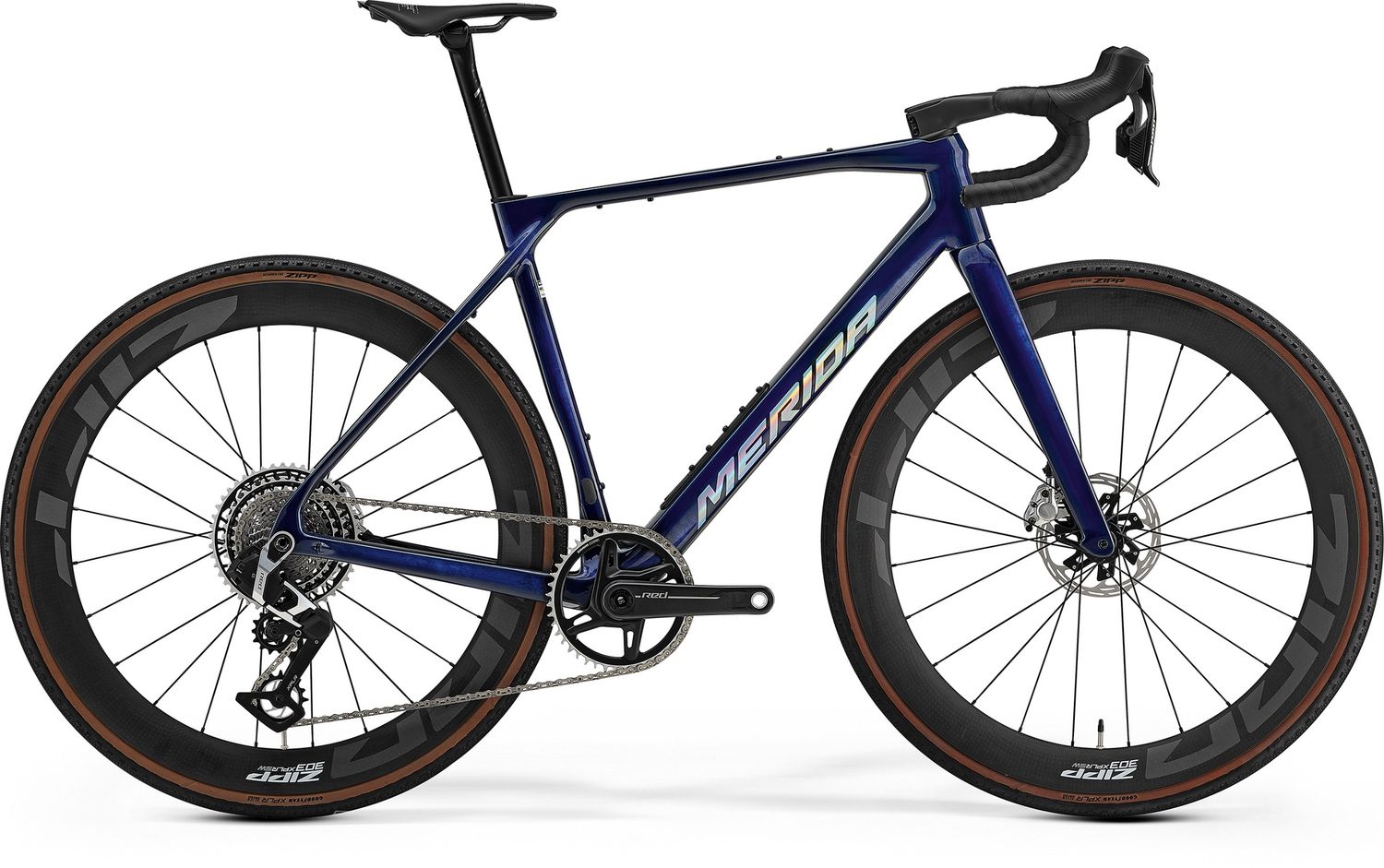

Merida MY26 Mission 10K
Product Details
Brand:
MERIDA
Highlights:
- Lightweight CF4 carbon frame with gravel race orientated geometry
- SRAM Red XPLR AXS 13-speed wireless groupset
- Zipp 303 XPLR SW carbon wheels
- Goodyear XPLR 40 mm slick tyres designed for Zipp wheels
- Merida Team SL GR1P one piece carbon cockpit
- Down tube storage trunk with Fidlock cover for race nutrition and spares
Gravel racing is your game! Look no further - a new sheriff is in town. Welcome to the top-of-the-range Mission 10K. Our new carbon race frame is loaded with the latest gravel racing gear, including a 13-speed SRAM Red XPLR groupset, a one-piece Merida carbon bar and stem and new extra-wide Zipp 303 XPLR SW carbon wheels. All of this is designed to help you and your Mission reach the podium at your next gravel race or gain the edge on your next multi-surface outing.
Specification
Frame
- CF4 II; carbon; 100 x12mm / 142 x 12mm axle standard; BSA bb standard; max. tyre size -700x40C
Fork
- Mission CF4 II; Tapered; material: carbon; 700x45C max. tyre size
Gears
- 13
Shifters
- Front: SRAM Red AXS; Hydraulic disc, Rear: SRAM Red AXS; Hydraulic disc
Rear Derailleur
- SRAM Red XPLR; AXS wireless; 1x13; T-Type
Bottom Bracket
- SRAM DUB BSA Road Wide; 68mm
Chain
- SRAM Red; Flattop
Chainset
- SRAM Red XPLR; 44 tooth chainset; material:Carbon; Crank length: (XXS-XS) - 165mm, (S-M) - 170mm, (L-XL) - 172.5mm
Cassette
- SRAM Red XPLR; XG-1391; 10-46 teeth; 13speed
Brake Lever
- SRAM Red AXS
Front Brake
- SRAM Red AXS; Hydraulic disc with SRAM Paceline X Centerlock; 160mm
Rear Brake
- SRAM Red AXS; Hydraulic disc with SRAM Paceline X Centerlock; 160mm
Grip
- Merida ROAD Expert
Handlebar
- Merida Team SL 1P GR 1 Integrated; material: carbon; (XXS-S) - 380mm wide, (M-L) - 400mm wide, XL - 420mm wide
Stem
- Merida Team One-Piece GR Integrated; material: carbon; Length: (XXS-S) - 90mm, M - 100mm, (L-XL) - 110mm
Head Set
- Merida Team SL (SE-301 neck)
Pedal
- Not included
Saddle
- Prologo Nago R4 PAS; Nack
Seat Post
- Metron RS Seatpost; 27.2mm diameter; in-line; material: carbon
Wheel Size
- 700c
Rims
- Zipp 303 XPLR SW; 100x12mm; 142x12mm; 32mm inner rim width; 54mm rim depth; Centerlock; material: carbon; (tubeless tape and valves included)
Spokes
- Part of wheelset - Zipp 303 XPLR SW
Front Hub
- Part of wheelset - Zipp 303 XPLR SW
Rear Hub
- Part of wheelest - Zipp 303 XPLR SW
Front Tyre
- Goodyear XPLR Slick designed for Zipp; 40-622; TLR;
Rear Tyre
- Goodyear XPLR Slick designed for Zipp; 40-622; TLR;
Colour
- Glossy Blue Clear Coat (Hologram Decal)
Season
- 2026
Other
- Garmin Carrier + Garmin insert*2 + GoPro/Light Mount, Disc cooler F/R, Trunk bag x 1 pc and bottle cage
Geometry
