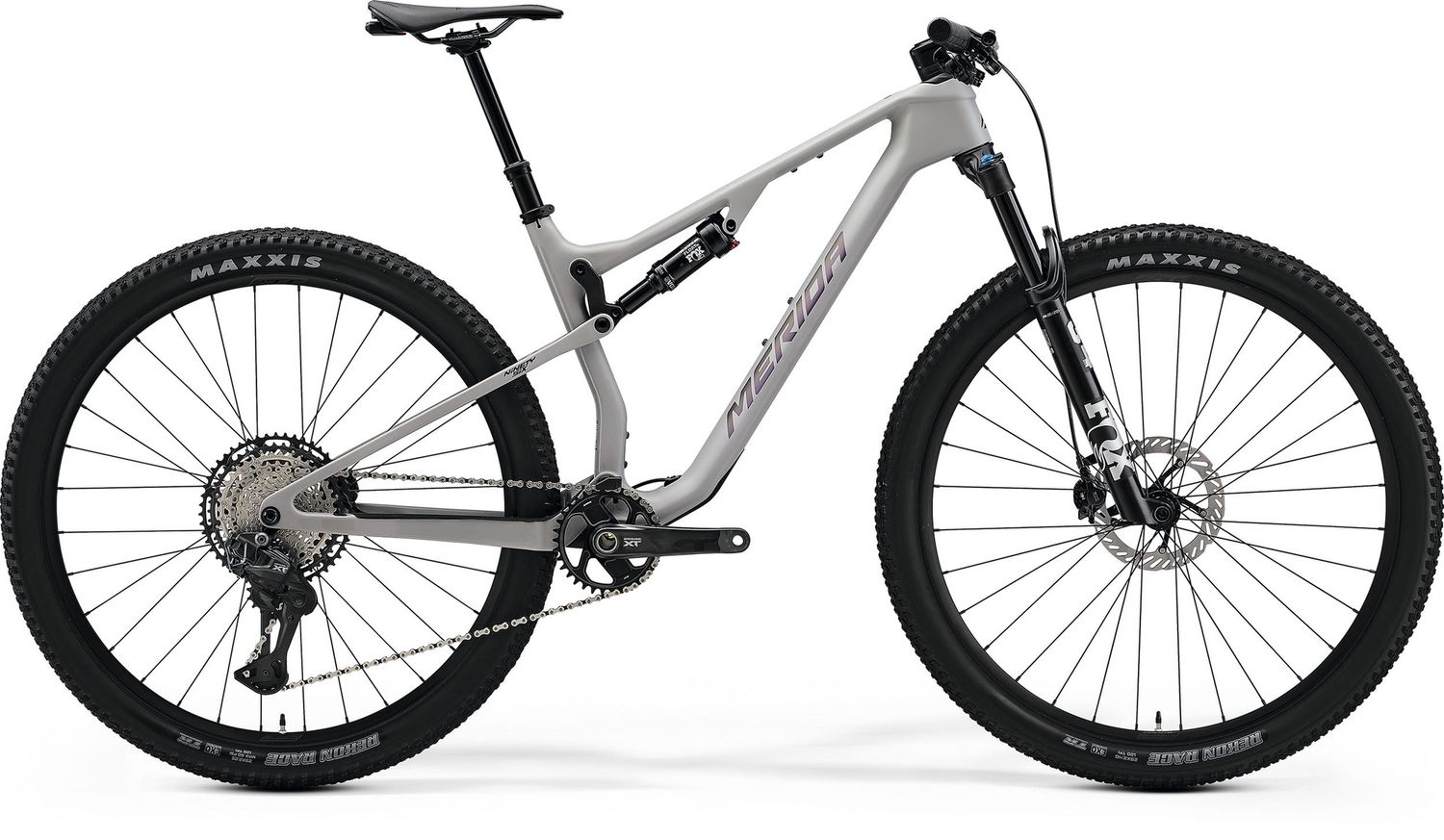

Merida MY26 Ninety-Six XT
Product Details
Brand:
MERIDA
Highlights:
- Lightweight CF4 carbon frame with 100 mm travel and P-FLEX technology
- Modern aggressive geometry with dropper seatpost
- Fox 34 SL 120mm fork
- 12-speed Shimano XT Di2 wireless drivetrain
- Powerful Shimano XT brakes
- Fast rolling Maxxis Rekon tyres on tubeless ready wheels
There used to be a time when you had to choose between trail bike performance and cross-country race ready weight. Not any more. Say hello to the Ninety-Six XT. It builds on the speedy genes of our short travel race winner with a CF4 carbon frame and adds a whole new layer of capability thanks to a longer travel 120 mm Fox 34 SL Performance fork paired to 100 mm out back. Add in fast rolling tyres, a long travel dropper post and a super smooth Shimano XT Di2 wireless drivetrain and brakes and you're ready to rock.
Specification
Frame
- Ninety-Six CF4 III; material: carbon; 29x2.35" max. tyre size; 148x12mm axle standard; BSA bottom bracket
Shock
- Fox Float SL Performance Elite; Large Volume aircan; 3 Pos PTL remote lockout
Fork
- Fox 34 Float SL Performance; Air; 120 mm travel; Tapered; 3 Pos Remote lockout; 44mm fork offset
Gears
- 12
Shifters
- Rear: Shimano XT DI2 M8250; wireless
Rear Derailleur
- Shimano XT DI2 M8250; wireless; SGS
Bottom Bracket
- Shimano BB-MT-501; 24mm
Chain
- KMC X12
Chainset
- Shimano XT M8200; 34 tooth chainset; Crank length: 170mm
Cassette
- Shimano XT M8200; 10-51 teeth; 12 speed
Front Brake
- Shimano XT M8200; 2 piston with Shimano RT-CL700; 180mm
Rear Brake
- Shimano XT M8200; 2 piston with Shimano RT-CL700; 160mm
Grip
- Merida Comp TR
Handlebar
- FSA SIC CF 1-piece cockpit; material: carbon; 760mm wide, -7°; (S-L) - 60mm rise, XL - 80mm rise
Stem
- Length: (S-L) - 60mm, XL - 80mm
Head Set
- Acros ICR Merida integrated neck; Upper and lower IPS sealing
Pedal
- Not included
Saddle
- Prologo Akero R PAS; reycled; V-mount; incl. Merida minitool
Seat Post
- Merida Team TR SL; 30.9mm diameter; in-line; 150mm seat post travel
Wheel Size
- 29"
Rims
- Merida Expert CC II; 25mm inner rim width; material: aluminium; Tubeless ready (Stans 30mm tubeless tape installed and valves not included)
Spokes
- Double Butted Black stainless w/black nipples
Front Hub
- Shimano TC500-B; 110x15mm; 32 spoke; Centerlock
Rear Hub
- Shimano TC600-MS-B; 148x12mm; 32 Spoke; Centerlock
Front Tyre
- Maxxis Rekon Race; 29x2.4" WT; tubeless ready; 3C MaxxTerra EXO
Rear Tyre
- Maxxis Rekon Race; 29x2.25"; kevlar bead; TR EXO 120 threads per inch
Colour
- Silk Grey (Purple)
Season
- 2026
Other
- Merida SMART MOUNT; Garmin Carrier + Garmin insert*2 + GoPro/Light Mount and Merida Multitool with saddlebox
