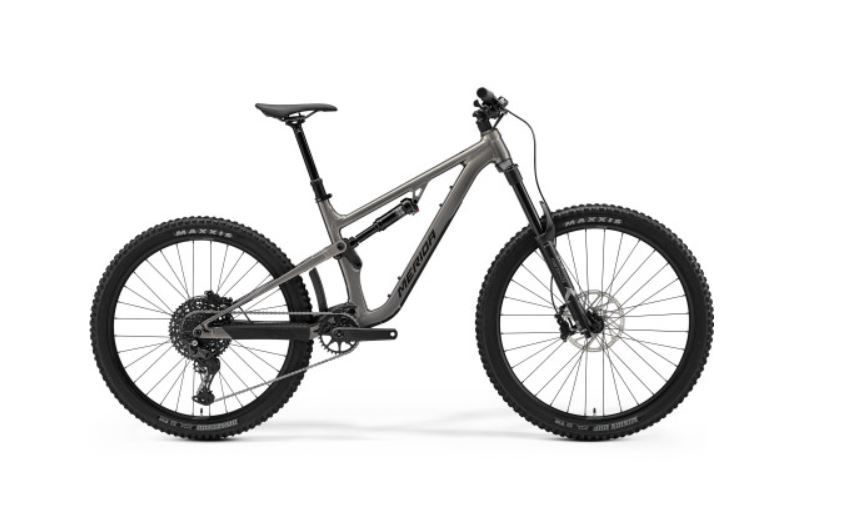

Merida MY26 One-Forty 400
Product Details
Brand:
MERIDA
Highlights:
- Full aluminium frame with FAST kinematic suspension and radical trail geometry
- Full 29er wheel set up with Agilometer sizing
- Marzocchi Z2 fork and Bomber suspension
- Shimano CUES 1 x 11 drivetrain
- Dropper post
- Powerful 4-piston hydraulic disc brakes
The One-Forty 400 brings an unheard of level of climbing and descending performance into a high-value package built around our test and award-winning aluminium frame. It's got exactly the same ground-breaking geometry as its more expensive brethren, just paired with kit that delivers the performance you need, without the price tag. Dropper posts on all models, a wide-range 11-speed Shimano drivetrain and no-nonsense suspension from Marzocchi get the job done without fuss.
Specification
Frame
- Lite Aluminium, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axles standard, threaded BB, trail mount and bottle bosses, flip chip for mullet or 29er. max tyre size - 2.5"
Shock
- Marzocchi Bomber inline
Fork
- Marzocchi Z2; Air; 150 mm travel; Tapered; 44mm fork offset; 29x2.6" max. tyre size
Gears
- 11
Shifters
- Rear: Shimano CUES U6000
Rear Derailleur
- Shimano CUES U6000; Shadow Plus
Bottom Bracket
- Samox BSA 24mm EB2401
Chain
- KMC xGlide
Chainset
- Merida Expert TR II; 32 tooth chainset; Crank length: 170mm
Cassette
- SunRace 10-50t CS-UX400 EA5; 10-50 teeth; 11 speed; Linkglide
Front Brake
- SRAM DB4; 4 piston with SRAM CenterLine; 200mm
Rear Brake
- SRAM DB4; 4 piston with SRAM CenterLine; 200mm
Grip
- Merida Comp TR
Handlebar
- Merida Comp TR; material: aluminium; 780mm wide; 20mm rise
Stem
- Merida Comp TR; material: aluminium; 35 mm diameter; 0 degree rise; Length: 40mm
Head Set
- Acros ICR Merida External neck; Upper and lower IPS sealing
Pedal
- Not included
Saddle
- Merida Comp SL; 25% recycled material; V-mount; incl. Merida minitool
Seat Post
- Merida Expert TR II; 34.9mm diameter; in-line; (Xshort-Short) - 150mm, Mid - 170mm, Long - 200mm, Xlong - 230mm seat post travel
Wheel Size
- 29"
Rims
- Merida Comp TR II; 28mm inner rim width; material: aluminium; Tubeless ready (Stans 30mm tubeless tape installed and valves not included); front 29"; rear 27.5"
Spokes
- Black stainless w/black nipples
Front Hub
- Shimano TC500-B; 110x15mm; 32 spoke; Centerlock
Rear Hub
- Shimano TC500-HM-B; 148x12mm; 32 spoke; Centerlock
Front Tyre
- Maxxis Minion DHF; 29x2.5"; wired
Rear Tyre
- Maxxis Forekaster; 29x2.4"; wired
Colour
- Wild Honey (Golden Black)
Season
- 2026
