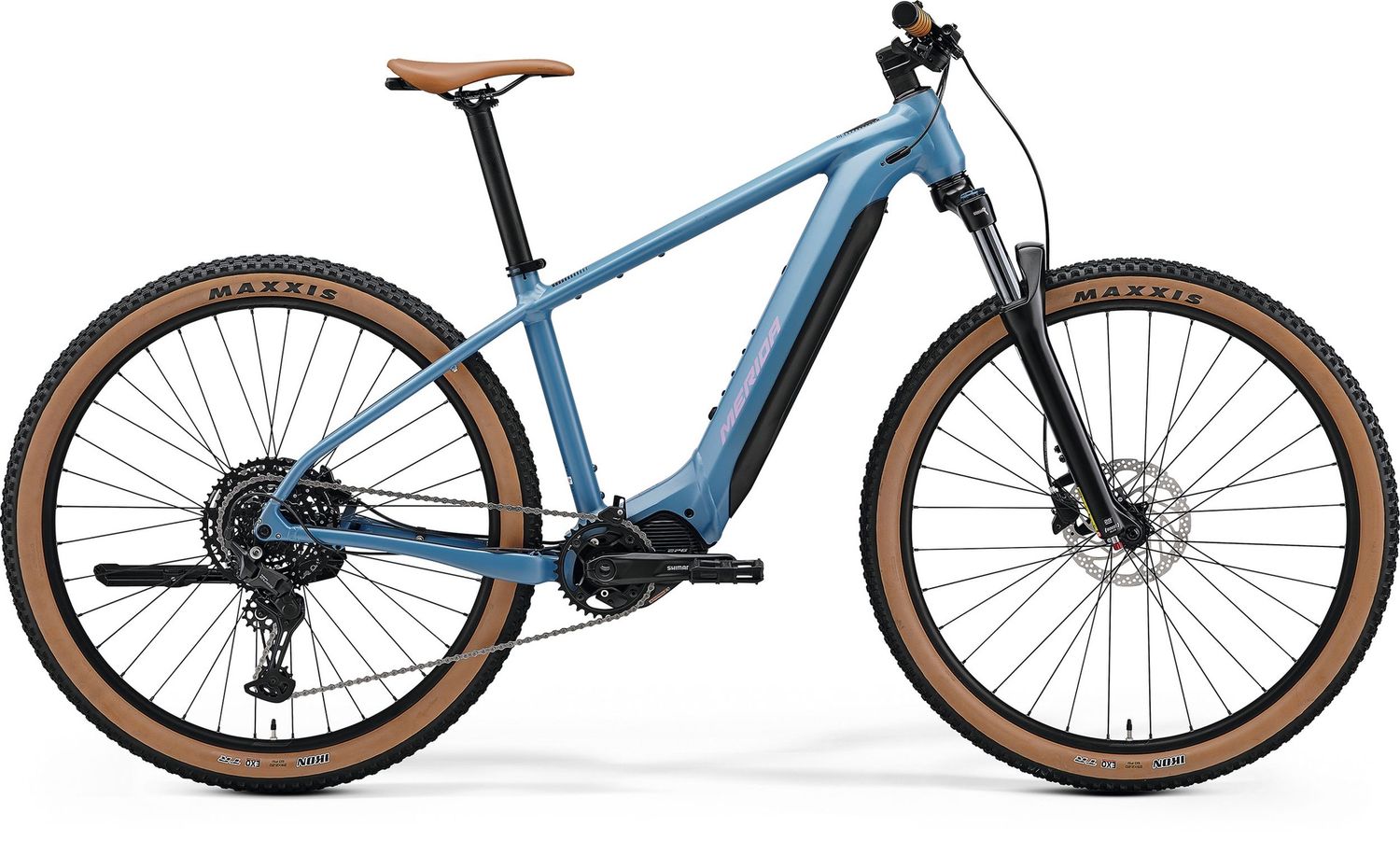

Merida MY26 eBig Nine 400
Product Details
Brand:
MERIDA
Highlights:
- Lightweight aluminium frame with 29er wheels
- Shimano EP6 drive unit with 85 Nm torque
- Integrated 630 Wh battery
- Confidence inspiring mountain bike handling
- Versatile for use on the trail or the commute
- Comfort and control enhancing suspension fork
The geometry of the eBig Nine follows a simple principle; as sporty as possible, as comfortable as necessary. The eBig Nine 400 offers the power to do more of what matters. . More fun when you're riding off-road, with a powerful 85NM Shimano EP6 drive unit to help you up the hills. More time in the saddle with a 630 Wh battery that'll keep you going for miles. More control, thanks to a SR Suntour suspension fork, chunky tyres and powerful Shimano brakes. More of everything except unnecessary weight, thanks to a high-quality aluminium frame that's also got a lifetime warranty.
Specification
Frame
- Lite III - Hydroformed 6066 aluminium, integrated battery, internal cable routing, Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Mounts for mudguards and kickstand. Max. tyre size 29"x2.25" with mudguards, 29"x2.35" without
Motor
- Shimano EP6; 85Nm
Battery
- Shimano EN806; 630Wh
Battery Capacity
- 630Wh
eBike Display
- Shimano SC-EN500A
Charger
- Shimano EC-E6002; 2A
Power Button
- CAP-045, Merida Power Button
Fork
- SR Suntour XCM34-Boost LO-R DS; 100mm travel; Tapered; 44mm fork offset
Gears
- 10
Shifters
- Rear: Shimano CUES U6000-10
Rear Derailleur
- Shimano Cues U6000 ; GS
Bottom Bracket
- included
Chain
- Shimano LG500
Chainset
- Shimano CRE70-B; 34 tooth chainset ; Crank: Shimano FC-EM600; 165mm
Cassette
- Shimano LG300; 11-48 teeth; 10 Speed
Front Brake
- Shimano MT-200; 2 piston with Shimano RT30; 180mm
Rear Brake
- Shimano MT-200; 2 piston with Shimano RTEM300; 180mm
Grip
- Merida Comp TK
Handlebar
- Merida Expert TR II; 760mm wide; 18mm rise
Stem
- Merida Expert eTRII; material: aluminium; 35mm diameter; 0 degree rise; GoPro & Supernova mount; length: 50mm
Head Set
- Merida-8157
Pedal
- VP VPE-537
Saddle
- Merida Comp SL; V-mount; incl. Merida minitool
Seat Post
- Merida Expert CC; material: aluminium; 34.9mm diameter; in-line
Wheel Size
- 29"
Rims
- Merida Comp CC II; 25mm inner rim width; material: aluminium
Spokes
- Black stainless ; black nipples
Front Hub
- Shimano TC500-B; 110x15mm; 32 spoke; Centerlock
Rear Hub
- Shimano TC500-HM-B; 148x12mm; 36 spoke; Centerlock
Front Tyre
- Maxxis Ikon; 29x2.2"; kevlar bead
Rear Tyre
- Maxxis Ikon; 29x2.2"; kevlar bead
Colour
- Silk Dove Blue (Blue)
Season
- 2026
Front Light
- CG-119PG-BLACK(1)
Rear Light
- CG-404RG-BLK
Other
- Shimano Satellite charging port; EW-CP100
