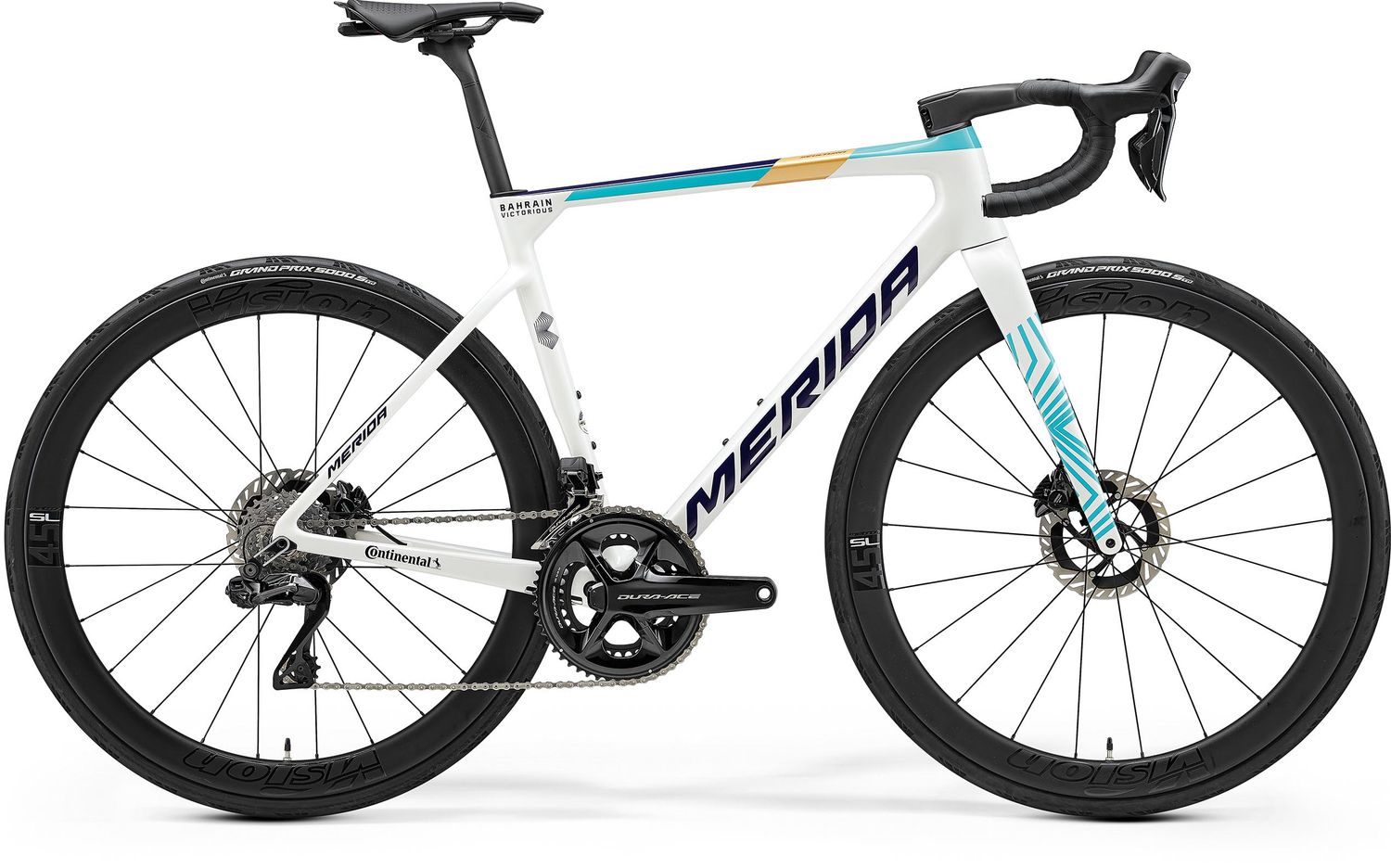

- Superlight CF5 Carbon frame and fork
- Shimano Dura Ace Di2 groupset with Power meter
- Vision Metron 45 SL carbon wheelset with Continental GP5000S TR 28c tyres
- Fully integrated carbon cockpit
- Merida S-Flex carbon seat post
- Disc cooler technology
Team Bahrain Victorious put the fifth generation Scultura thoroughly through its paces, winning mountain top stages of the Tour de France and the Vuelta a Espana before the bike was even launched. Gen 5 keeps the Scultura's fabled lightweight, agility and rider comfort focus and even manages to improve on both measures. The Scultura now incorporates learnings from the Reacto in terms of aerodynamics; they now share the same race proven geometry. Improving weight, comfort and aerodynamics requires plenty of engineering ingenuity. Round tubes are lighter than aero profiled tubes, fatter tyres are more comfortable but less aerodynamic. There are always compromises to be made. The new Scultura is the most aerodynamic ever and shows outstanding compliance, providing class-leading rider comfort. The marketing blurb suggests this helps keep the body fresh for the final sprint or ascent. A couple of mountain top, grand tour stage victories underline that point quite well!
Specification
- CF5 V carbon - Premium fibres for lightweight and performance, race geometry. Internal cable routing, 142 x12mm axle standard, flat mount rear brakes with Disc Cooler, 1 1/2" to 1 1/4" headtube. Pressfit 86.5 BB Standard, Max tyre size - 30c
- Scultura CF5 Disc; full carbon; Max tyre size: 700 x 30c - Disc cooler technology
- 24
- Shimano Dura Ace Di2
- Shimano Dura Ace Di2
- Shimano Dura Ace Di2
- SM-BB92-41B, Pressfit 86.5
- Shimano CN-M9100-12
- Shimano Dura Ace; 52-36 tooth chainset; Power Meter; Crank length - 165mm (XXS), 170mm (XS), 172.5mm (S/M/L), 175mm (XL)
- Shimano CS-R9200; 11-30 teeth; 12 speed
- Shimano Dura Ace
- Shimano Dura Ace; Hydraulic disc brake caliper with Shimano CL900; 160mm rotor
- Shimano Dura Ace; Hydraulic disc brake caliper with Shimano CL900; 160mm rotor
- Prologo One-Touch
- Team SL 1P Integrated; carbon; 380mm (XXS-XS-S), 400mm (M-L-XL)
- Team One-Piece Integrated; carbon - Length - 90mm (XXS-XS), 100mm (S), 110mm (M-L), 120mm (XL)
- Merida Team SL (OP-203 neck)
- Scratch M5 with V-mount adapter; includes Merida minitool
- Merida Team SL; 27.2mm diameter; 15mm layback; Carbon; S-Flex
- 700c
- Part of wheelset - Vision Metron 45 SL Clincher TL Disc; 18mm inner rim width; 45 mm rim depth; carbon; Tubeless ready (tubeless tape and valves included)
- part of wheelset
- Part of wheelset - Vision Metron 45 SL Clincher TL Disc; 100 x 12mm; Centerlock
- Part of wheelset - Vision Metron 45 SL Clincher TL Disc; 142 x 12mm; Centerlock
- Continental Grand Prix 5000S TR; 700 x 28C; Kevlar bead; tubeless ready
- Continental Grand Prix 5000S TR; 700 x 28C; Kevlar bead; tubeless ready
- Teal/Pearl
- 2025
Geometry
