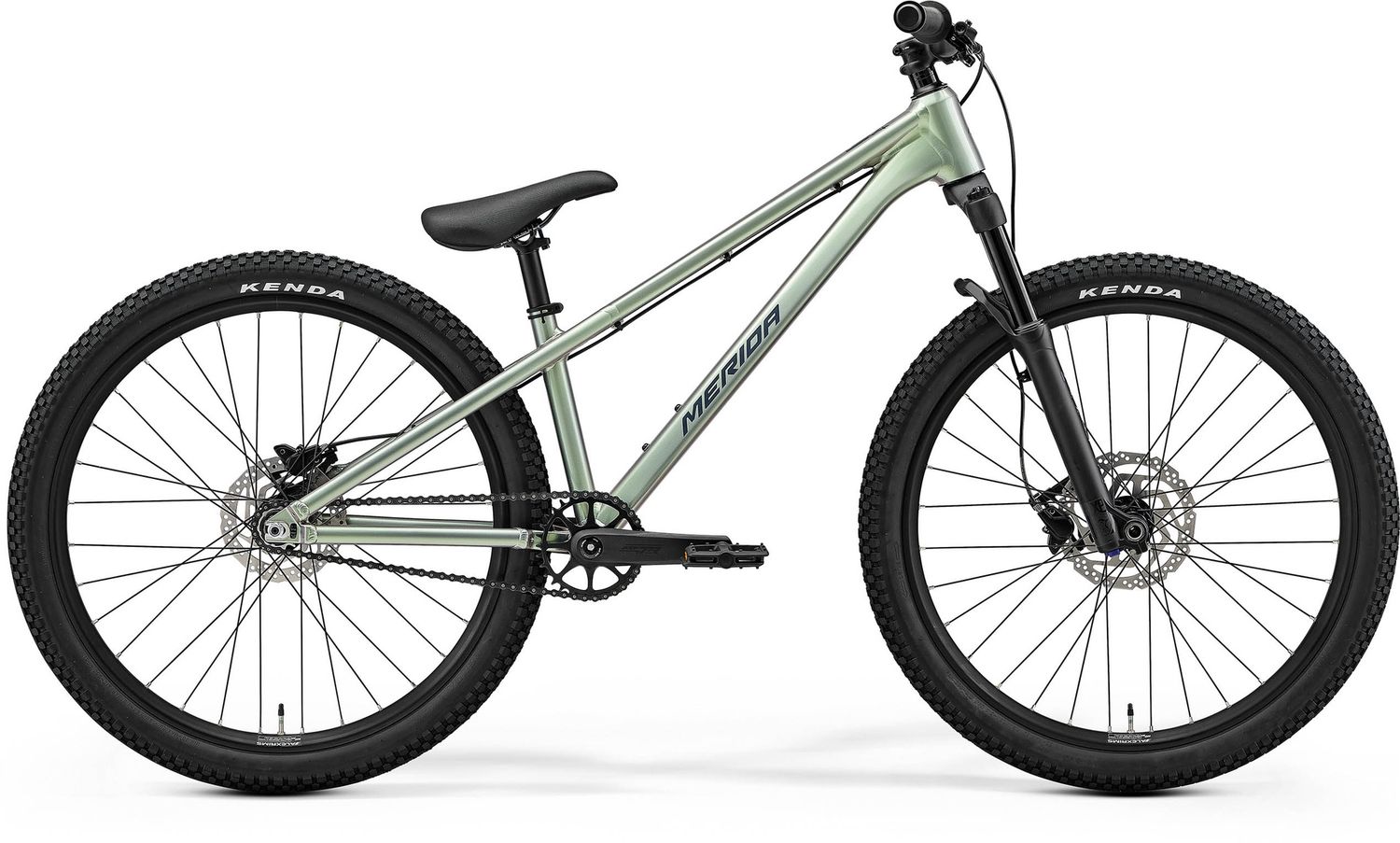

Merida MY26 Dirt 500
Product Details
Brand:
MERIDA
- Tough 6061 aluminium frame with ability to run standard gyro
- Dirt-jump specific Manitou Circus 100 mm fork with 20 mm axle
- Hydraulic Shimano rear brake plus cable operated front
- Tough 160 mm cranks
- 32H Alex rims on Novatec hubs for tough 26" wheels
- Singlespeed gearing
Our new dirt jump and pump track bike won't break the budget - or break, full stop. Built tough from 6061 aluminium, it's got 26" wheels and a singlespeed setup for bombproof reliability. Designed to deliver the most fun for your money, a Manitou Circus 100mm fork will save your hands when you case it, while tough Alex rims and fast Kenda tyres are ready to rip pump track berms.
Specification
Frame
- TFS - aluminum; 135 x10mm axle standard; BSA BB Standard, Max tyre size 26 x 2.5"
Fork
- Manitou Circus Expert, Air; 100 mm travel; 110x20mm; 41mm fork offset; tapered
Gears
- 1
Bottom Bracket
- Samox BSA 24mm EB2401
Chain
- KMC Z1 narrow
Chainset
- Merida Expert TR II; 32 tooth chainset; Crank length: 160mm
Cassette
- 14 teeth single speed
Front Brake
- Shimano MT200; 2 piston with Shimano RT26; 180mm
Rear Brake
- Shimano MT200; 2 piston with Shimano RT26; 160mm
Grip
- Merida Comp DR
Handlebar
- Merida Comp TR; material: aluminium; 780mm wide; 20mm rise
Stem
- Merida Comp TR; material: aluminium; 35 mm diameter; 0 degree rise; Length: 40mm
Head Set
- FSA NO.57SC
Pedal
- VP VPE-536
Saddle
- Merida Comp DR
Seat Post
- Merida Comp DR; material: aluminium; 27.2mm diameter; in-line; 250mm length
Wheel Size
- 26"
Rims
- Alexrims MD30; 30mm inner rim width; material: aluminum; 32H; tubeless ready
Spokes
- Black stainless
Front Hub
- Novatec DH61SB-HL; 110x20mm; 32 Spoke; 6 bolt
Rear Hub
- Novatec D256SBT; 135x10 M10mm; 32 Spoke; 6 bolt; 14t
Front Tyre
- Kenda K-Rad K905 ; 26x2.3"; wired
Rear Tyre
- Kenda K-Rad K905 ; 26x2.3"; wired
Colour
- Glossy Grey With Green Flakes In Clear Coat
Season
- 2026
